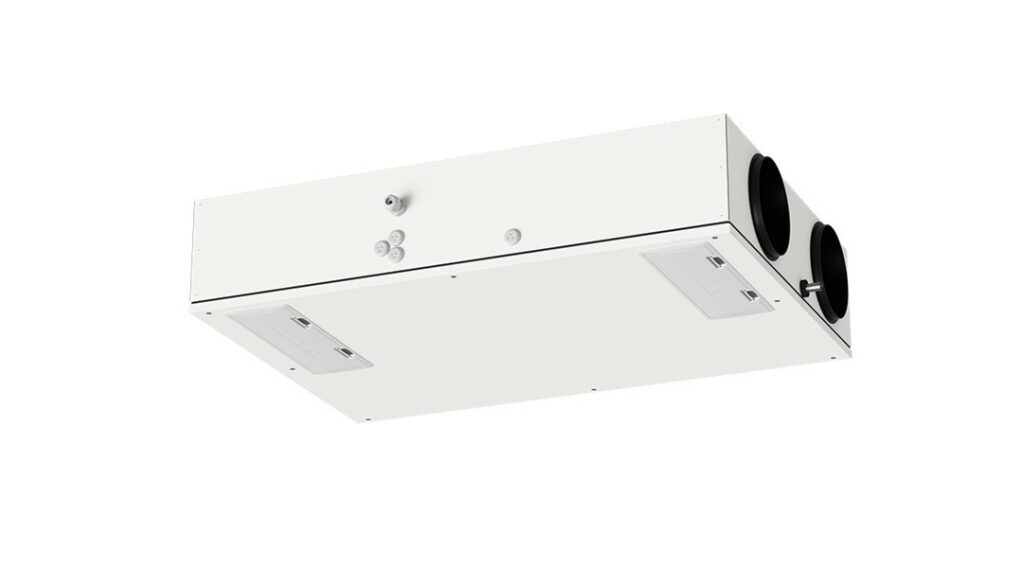

The new Domekt CF 200 F C8 takes compact residential ventilation to a new level. With a height of just 205 mm and an exceptionally compact design, the unit replaces the previous model and is intended for apartments and other residential spaces where installation space is limited. Despite its ultra-flat construction, the unit provides efficient ventilation and heat recovery, quiet operation and convenient smart control.

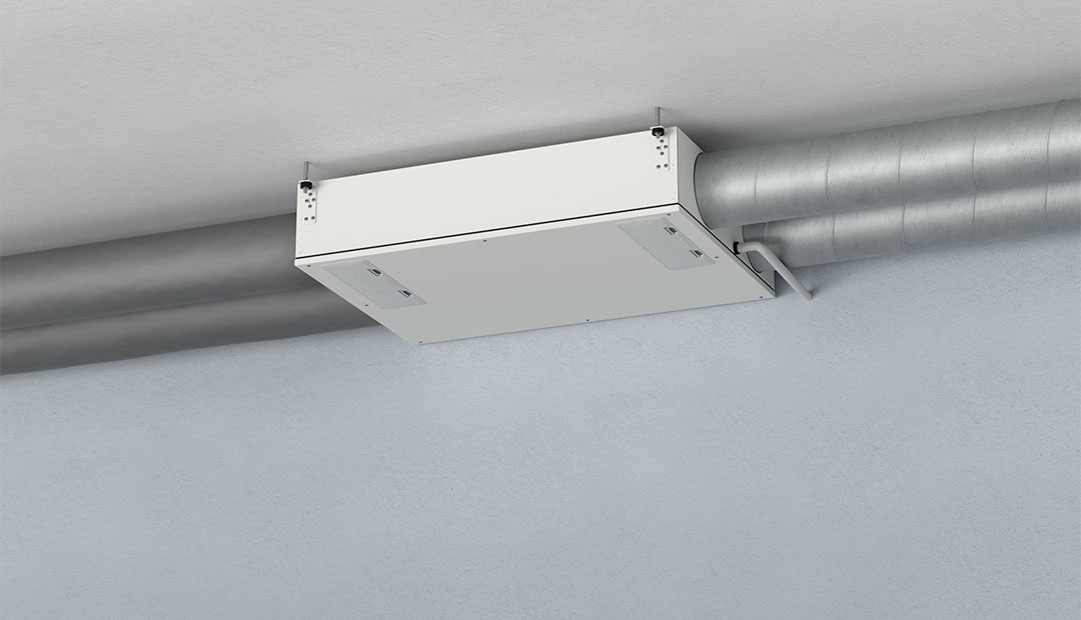

Compared with the previous generation, the new model is 89 mm lower and 135 mm shorter, while the overall casing volume has been reduced by approximately 28%. Thanks to its more compact dimensions, the unit provides greater flexibility when planning ventilation systems and can be installed, for example, above suspended ceilings or in other areas where installation height is limited.
Efficient heat recovery
The Domekt CF 200 F C8 uses a counter-flow plate heat exchanger with a temperature efficiency of up to 85%. Energy-efficient fans ensure a low SPI value of 0.24 W/(m³/h), while the unit is rated in energy class A+.
Quiet operation in residential spaces
A smaller casing does not mean higher noise levels. The sound pressure level of the Domekt CF 200 F C8 is only 31 dB(A) at a distance of three metres. This makes the unit suitable for residential spaces where quiet operation is just as important as compact dimensions.
Adaptable to different climate conditions
As standard, the unit is not equipped with an integrated electric preheater or air heater. For colder climates, a separate duct-mounted preheater is available as an optional accessory. This allows the ventilation system to be configured according to local climate conditions and the specific requirements of the project without increasing the dimensions of the unit itself.
C8 automation and convenient control
Komfovent’s in-house developed C8 control automation allows the ventilation system to be controlled easily and conveniently. Operating modes, weekly schedules and demand-controlled ventilation can be configured according to the user’s needs.
The unit can be controlled via a control panel, the integrated web server or remotely using the KOMFOVENT Control mobile app. External air quality and humidity sensors can also be connected to the system for demand-controlled ventilation.
Key specifications of the Domekt CF 200 F C8
- Maximum airflow: 173 m³/h
- Dimensions: 660 × 205 × 965 mm
- Heat recovery efficiency: up to 85%
- SPI: 0.24 W/(m³/h)
- Energy class: A+
- Sound pressure level: 31 dB(A) at a distance of three metres
- Weight: 33 kg
Find the technical specifications and additional information about the Domekt CF 200 F C8 on Komfovent’s official product page.
